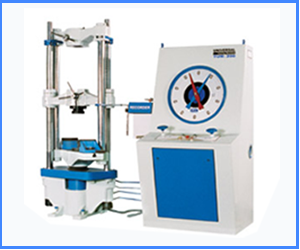

Analogue – Universal Testing Machines ( Model : TUN )


Variety of tests like Tension,Compression,Tranverse, etc. are conducted.
Continuous roll autographic “Load Vs Elongation” recorder.
Suitable for testing a wide range of metallic materials.
Extra (Optional) Accessories such as – Mechanical Extensometer,  Load-Stabilizer,  Attachments for Brinell test, Tensile test for shouldered & threaded,  Single & Double shear test,  Bolts-Nuts & Washer test, Rope test, Flat Belt test, Bend-Rebend test, 180° Bend test, Pull-Out test, etc. are available.
Capacities from 100 kN to 2000 kN.
Various Analogue Models  -  TUN-100,  TUN-200,  TUN-400,  TUN-600, TUN-1000  &  TUN-2000.
Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.

Technical Specification For Analogue Versions -

 MODEL

 TUN-100

 TUN-200

 TUN-400

 TUN-600

 TUN-1000

 TUN-2000

 Measuring  Capacity (kN)

 100

 200

 400

 600

 1000

 2000

 1’st Range    (kN)

 0 - 100

 0 - 200

 0 - 400

 0 - 600

 0 - 1000

 0 - 2000

 Least Count  (kN)

 0.2

 0.4

 0.8

 1

 2

 4

 2’nd Range   (kN)

 0 - 50

 0 - 100

 0 - 200

 0 - 300

 0 - 500

 0 - 1000

 Least Count  (kN)

 0.1

 0.2

 0.4

 0.5

 1

 2

 3’rd Range    (kN)

 0 - 25

 0 - 50

 0 - 100

 0 - 120

 0 - 250

 0 - 500

 Least Count  (kN)

 0.05

 0.1

 0.2

 0.2

 0.5

 1

 4’th Range    (kN)

 0 - 10

 0 - 20

 0 - 40

 0 - 60

 0 - 100

 0 - 200

 Least Count  (kN)

 0.02

 0.04

 0.08

 0.1

 0.2

 0.4

 Overall dimensions approx.  (mm)

 1950 x 800 x 1850

 2000 x 800 x 1900

 2100 x 800 x 2060

 2200 x 800 x 2400

 2350 x 800 x 2700

 3000 x 800 x 3600

 Weight approx (kg)

 1200

 1300

 2100

 3100

 4100

 8500


Common Specification For All Versions -

 MODEL

 TUN-100

 TUN-200

 TUN-400

 TUN-600

 TUN-1000

 TUN-2000

 Measuring  Capacity (kN)

 100

 200

 400

 600

 1000

 2000

 Max. Tensile Clearance  at  fully decended  piston position (mm)

 50 - 700

 50 - 700

 50 - 700

 50 - 800

 50 - 850

 50 - 900

 Max. Clearance for Compression Test (mm)

 0 - 700

 0 - 700

 0 - 700

 0 - 800

 0 - 850

 0 - 900

 Distance between columns (mm)

 450

 500

 500

 600

 750

 850

 Piston Stroke (mm)

 150

 200

 200

 250

 250

 300

 Max. straining speed at no load (mm/min)

 300

 150

 150

 100

 80

 45

 Power Supply

3 phase     415V          50Hz       AC

 Total   H.P.

 1.5

 1.5

 2.5

 2.5

 4.0

 6.5


Standard Accessories For All Versions -

 MODEL

 TUN-100

 TUN-200

 TUN-400

 TUN-600

 TUN-1000

 TUN-2000

 Pair for compression plate dia (mm)

 120

 120

 120

 120

 160

 220

 Tension Test Jaws

 For Round Specimen dia (mm)

 10 - 20

 10 - 20

 10 - 25

 10 - 25

 10 - 30

 20 - 40

 For Round Specimen dia (mm)

 20 - 30

 20 – 30

 25 - 40

 25 - 40

 30 - 50

 40 - 60

 For Round Specimen dia (mm)

 -

 -

 -

 40 - 55

 50 - 70

 60 - 80

 For Flat Specimen Thickness (mm)

 0 - 10

 0 - 10

 0 - 15

 0 - 15

 0 - 22

 0 - 22

 For Flat Specimen Thickness (mm)

 10 - 20

 10 - 20

 15 - 30

 15 - 30

 22 - 44

 22 - 45

 For Flat Specimen Thickness (mm)

 -

 -

 -

 -

 44 - 65

 45 - 70

 Max. width of Flat Specimen (mm)

 50

 50

 65

 70

 70

 90

 Transverse Test

 Adjustable Roller Support of width (mm)

 150

 150

 150

 160

 160

 200

 Diameter (mm)

 30

 30

 30

 50

 50

 70

 With  Max. adjustable clearance (mm)

 450

 500

 500

 600

 800

 900

 Punch tops of radius (mm)

 6

 6

 10

 16

 16

 30

 Punch tops of radius (mm)

 12

 12

 16

 22

 22

 40
